Building Performance Evaluation as a Function of Distance and Time

Posted by Kent Doss on Dec 02, 2013

Find me on:

Building Efficiency Chart

As a dedicated healthcare architect I’ve learned to approach design challenges with the goal of harmonizing requirements that are often diametrically opposed.While the personal environmental psychological needs of the patient may not be conducive to the most efficient operational flows or facilities maintenance processes, the responsibility for defining the highest level of synchronicity possible between base project requirements is something I take very seriously and embrace completely.

As the physical platforms for delivering healthcare continue to evolve in their complexities while regulated reimbursement costs decline, efficient planning and design become increasingly more important as healthcare cost control mechanisms. Determining the proper operational and physical relationships of project components can have dramatic and far-reaching impact to the bottom line performance of a facility.

The rigor of Array’s approach to ensure maximized efficiency is illustrated by a recent analysis for a large (approximately 175,000 gross square feet) ambulatory care facility in western Pennsylvania. After the conceptual programming phase of the project, we were asked to evaluate two potential sites for the facility. The first site had a compact size that required the program to be distributed over three floors while the second allowed a two-story scheme. In order to determine which site would result in the most operationally sustainable facility, we evaluated the micro- and macro-departmental relationships as a function of both distance and time.

In order to assign appropriate importance to departments that were more operationally aligned or more frequently traveled, we developed a functional relationship hierarchy and scaled the number of trips between departments accordingly:

PRIORITY RANKING DESCRIPTION TRIP RATIO TRIP %
1 Very strong relationship. Departments should be adjacent. High potential for shared staff and/or patient cross-referrals. 8 53.3%
2 Strong relationship. Departments should be located on the same floor. 4 26.6%
3 Moderate relationship. Departments should be convenient, however different floors are acceptable. 2 13.3%
4 Weak relationship. Departments have limited traffic or communication. May be remotely located. 1 6.6%
X No relationship. Departments require no traffic or communication. 0 0%



Additional constants that were used in our calculations included the average adult walking speed (4.1 feet per second) and the typical elevator wait and trip time (20 seconds per floor for the two-story design / 30 seconds per floor for the three-story design).

After measuring the distance between building entrances, departmental entrances and vertical transportation points, we converted all data to time in order arrive at a comparable, apples-to-apples data set (for example, a 100 foot travel distance was converted to time by dividing by the 4.1 feet per second walking speed constant). The final step was to weight the data based upon the departmental priority rankings.

The data clearly proved that the two-story scheme resulted in the most efficient building. However, regardless of the information that this type of raw data can convey, we have found that if data isn’t easily understandable it is easy to ignore. The challenge we set for ourselves is to be able to convert complex data into pictures and graphics that legibly and comprehensively fit onto an 11x17 sheet of paper (or an A3 for those speaking in Lean language).

Finally, we try to make a quantifiable comparison statement about the data – for this project, saying that one design performed an aggregate of 221 seconds per interdepartmental trip better than another design would have been meaningless, however converting this data to the corresponding 8.3 full-time equivalent employees ($1.2M in salary) per year and forecasting the $34M in salary over the course of the anticipated 20-year lease provided our client’s senior administration with building performance metrics in a format that could be used in their fiscal evaluations and decision making processes.

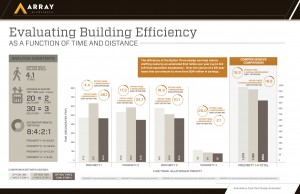

The final presentation of this data is in the illustration above (click to enlarge) - I believe that the value of infographics like these is in offering clarity. When properly (and scientifically) composed they can quickly and compellingly convey salient information and relevant data while enabling the quick decision making that is a base requirement of today’s fast moving project schedules. Taking the time to analyze design option data and to skillfully communicate it creates a tangible link between operational constructs, design strategies and performance metrics.
